Hi All, does anyone know if it is possible to adjust the handle size when editing shapes like polygons? It is an absolute pain in the as when you’re trying to align precisely to something below it. Even a adjusting the opacity of the handle would help.
1 Like
I’d love to hear the answer to this as I have issues lining stuff up when I’m creating graphics, like matching a pipe section to an elbow. Don’t know if this is the same issue, but either way I’d love to learn to make small components conecting with other small parts more aligned.
What do you mean by handle size?
I think he means the boxes at the corners to resize components?
1 Like

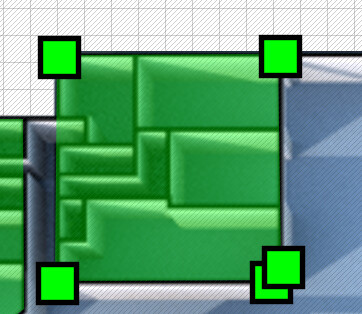

Correct, I mean the handles, the green boxes
A trick for this is to use the arrow keys. Hold left ctrl while pressing the arrows for smaller movements. With polys I like to turn off snapping, this way your free from the gridlines to move the handles wherever you like.
2 Likes
Well well well…
There are zoom in, zoom out and a third key that sets zoom level to normal. if you goto px file editing mode, spam the zoom out button, then click on the third magnifying glass to goto normal zoom level, you’ll see that the “handles” are smaller.
lmk if you need more details or screenshots.
2 Likes
Haha I like the kitbash technique
1 Like

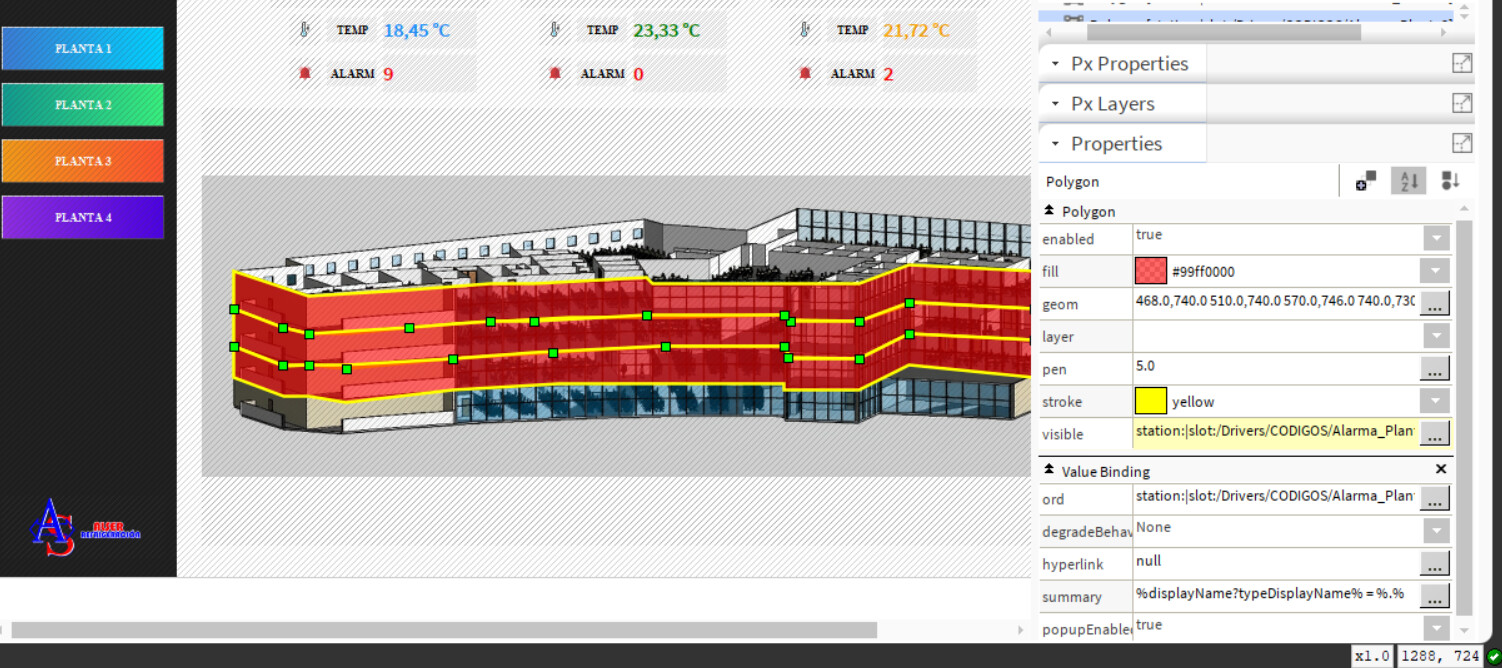

you can use geom, you use coordinates (you can find the coordinates at the bottom right).
In this example I am using three polygons and to make them all fit I just left the same coordinates.
floor 3 : 468.0,680.0 510.0,690.0 570.0,690.0 744.0,674.0 928.0,664.0 1090.0,664.0 1270.0,660.0 1276.0,668.0 1390.0,670.0 1480.0,640.0 1670.0,650.0 1820.0,590. 0 1820.0,520.0 1670.0,590.0 1470.0,580.0 1390.0,610.0 1270.0,610.0 1060.0,610.0 1050.0,600.0 870.0,610.0 800.0,610.0 670.0,620.0 510.0,630.0 390.0,590.0 390.0,650.0
floor 2: 468.0,740.0 510.0,740.0 570.0,746.0 740.0,730.0 900.0,720.0 1080.0,710.0 1270.0,710.0 1276.0,728.0 1390.0,730.0 1470.0,690.0 1670.0,700.0 1820.0,640.0 1820. 0,580.0 1670.0,650.0 1470.0,640.0 1390.0,670.0 1280.0,670.0 1270.0,660.0 1050.0,660.0 870.0,670.0 800.0,670.0 670.0,680.0 510.0,690.0 468.0,680.0 390.0,650.0 390.0,710.0
floor 1: 470.0,790.0 510.0,790.0 570.0,800.0 740.0,780.0 910.0,770.0 1090.0,770.0 1270.0,770.0 1270.0,770.0 1270.0,780.0 1390.0,780.0 1470.0,740.0 1670.0,760.0 1820.0,690.0 1820. 0,640.0 1670.0,700.0 1470.0,690.0 1390.0,730.0 1280.0,730.0 1272.0,710.0 1070.0,710.0 870.0,720.0 740.0,730.0 570.0,740.0 510.0,740.0 470.0,742.0 390.0,710.0 390.0,760.0
1 Like
