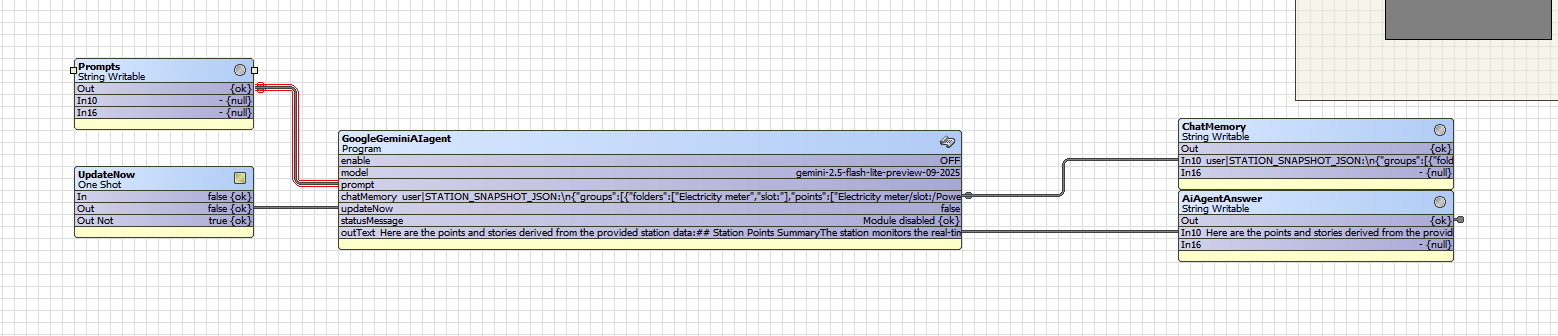

image1558×336 35.5 KB

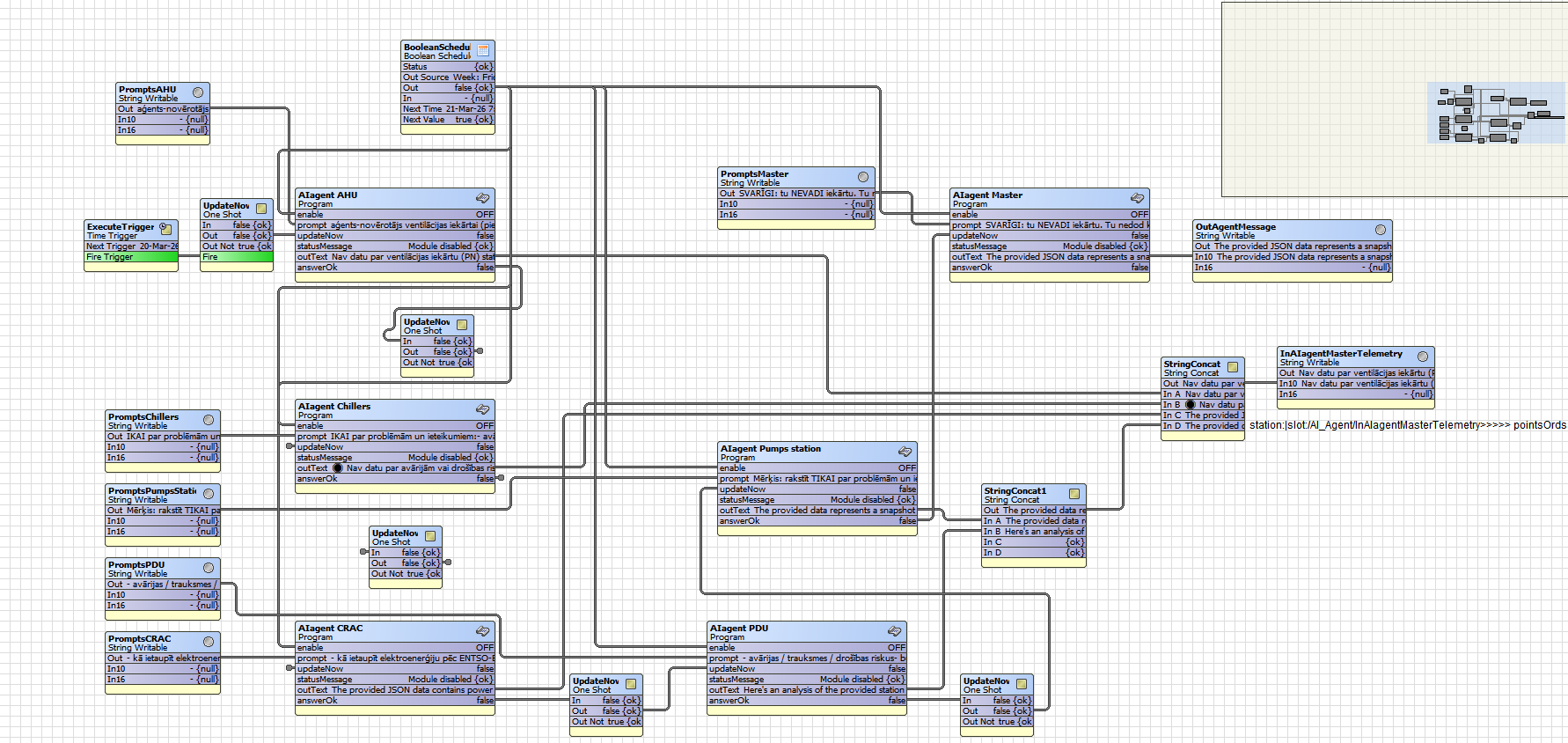

USER MANUAL: Niagara ProgramObject “Gemini Agent”

  1. What it is :white_check_mark:
    This ProgramObject sends a single request to Google Gemini when you press updateNow and receives a text answer.
    It can automatically build a “station snapshot” (points/folders) and, optionally, add history data (BQL).
    Important: the read-only version does NOT write values to points and does NOT execute /set.

  2. What happens on updateNow (request flow)

  1. Checks enable.
  2. If the model list has not been loaded yet, it loads models first and then automatically continues with the request.
  3. Collects:
    • STATION_SNAPSHOT_JSON from pointsOrds
    • STATION_HISTORY_JSON from historyBqlOrds (if provided)
  4. Builds the request:
    • systemInstruction = instructions (except for gemma models; see below)
    • contents = (chat memory, if enabled) + current user text (prompt + snapshot + history)
  5. Sends HTTP POST to the generateContent endpoint.
  6. Writes results:
    • outText = model answer (or ERR: …)
    • answerOk = true/false
    • statusMessage = short status + tokens (if Gemini returns usage)

The block sends requests only on updateNow. It does not call the API in the background by itself.

  1. Quick start in 5 minutes :high_voltage:
    Step 1. Create the ProgramObject and add the slots (see section 4).
    Step 2. Put your Gemini API key into apiKey.
    Step 3. Press refreshModelsNow (or press updateNow; it can fetch models automatically).
    Step 4. Pick a model in modelPick (or type it into model).
    Step 5. Fill pointsOrds (folders/points, one ORD per line).
    Step 6. Write your task in prompt (if empty, it uses “Analyze station data.”).
    Step 7. Pulse updateNow = true.
    Read the answer in outText and check statusMessage.

  2. Slots: what they do (core)

Control

  • enable (BBoolean). false = block does nothing, resets buttons, cancels pending work.
  • updateNow (BBoolean, one-shot). Sends one request. Returns to false automatically.
  • refreshModelsNow (BBoolean, one-shot). Refreshes the model list.
  • restartNow (BBoolean, one-shot). Soft restart: cancels pending work, clears 429 pause, resyncs model selection.
  • clearMemoryNow (BBoolean, one-shot). Clears chat memory (chatMemory).

Access

  • apiKey (BString). Gemini API key.

Instructions and prompt

  • instructions (BString). “System” instructions (systemInstruction). For gemma models these are injected into the user text.
  • prompt (BString). Task text. If empty, “Analyze station data.” is used.
  • maxOutputTokens (BInteger). Max output tokens. Default 400. Range: 50…8192.

Model

  • modelPick (BDynamicEnum). Dropdown of models (filled after refreshModelsNow).
  • model (BString). Model id (e.g., gemini-1.5-pro). If you paste “models/…”, the prefix is removed.
  • modelsList (BStatusString). Text list of models (after refresh).
  • modelsLastUpdate (BAbsTime). Timestamp of last model refresh.

Chat memory

  • memoryModePick (BDynamicEnum). What to store in memory (see section 7).
  • memoryMaxMessages (BInteger). How many last messages to keep (0…200). Default 12.
  • chatMemory (BStatusString). Memory storage as text (usually view-only).

Outputs

  • outText (BStatusString). Model response or “ERR: …”.
  • answerOk (BBoolean). true only after a successful response.
  • statusMessage (BStatusString). State: loading/sending/success/ERR/paused + tokens.
  1. Station snapshot: pointsOrds + limits :pushpin:
    pointsOrds (BString): list of ORDs, one per line.
    You can pass:
  • a point ORD (often ends with /out)
  • a folder ORD (the block walks it recursively and collects points)

Examples:

  • station:|slot:/Drivers/BacnetNetwork/AHU_1/points
  • station:|slot:/Drivers/BacnetNetwork/AHU_1/points/Sensors/SupplyTemp/out
  • station:|slot:/Drivers/OpcUaNetwork/Line1/points

Optional human label prefix
You may put a label before “station:”

  • Room12_station:|slot:/Drivers/OpcUaNetwork/SB_A1/points
    “Room12” is attached to the produced names and helps separate similar devices in different areas.

Limits and filters (auto-created after first run)

  • snapshotMaxPoints (BInteger). Default 2500, range 10…5000.
  • snapshotMaxDepth (BInteger). Default 25, range 1…50.
  • ignorePointNames (BString). Blacklist of exact point names, comma-separated: Temp, Hum, CO2.
  • ignoreFolderNames (BString). Blacklist of exact folder names, comma-separated: Diagnostics, Alarms.

Snapshot JSON format
The request includes JSON like:
{“groups”:[{“folders”:[…],“points”:[ “…”, “…” ]}, …]}

Each point becomes a line like:
“<path/prefix><Identifier - >PointName = value unit”
Numbers use 2 decimals, text/enums are cleaned from newlines, long strings are truncated.

Optional: groupFormat
If you add slot groupFormat (BString) and set a BFormat string, the block groups points using that format.
If you do not know BFormat, skip it; default grouping is usually fine.

  1. History: historyBqlOrds :chart_increasing:
    History is added only if historyBqlOrds is not empty.
    Format: one BQL-ORD per line.

Example:

  • Room201_history:/PS/M12K4VAS01$20Sensor_TE_201_1?period=last7days|bql:select timestamp, value

You can also add a label prefix before “history:”

  • Room201_history:history:/PS/Temp?period=last24hours|bql:select timestamp, value

Parameters (auto-created after first run)

  • historyMaxRows (BInteger). Default 100, range 1…50000. Sends last N rows.
  • historyMaxSeries (BInteger). Default 20, range 0…100. How many series to include.

Soft JSON size limit: 180000 chars. If exceeded, the block stops adding more series.

What is sent per series
For each series the block tries to resolve a table (BITable) and sends:

  • ord (string)
  • name (series name derived from ORD + prefix)
  • columns (column names)
  • rows (last N rows)
  • min/max/avg/last for column “value” (if numeric)
  • count (rows actually sent)
    If the ORD does not resolve to a table, the series gets an “error” field (e.g., not_table).
  1. Chat memory: how to use :brain:
    Memory works like this:
  • Before sending, the block adds previous messages from chatMemory into contents.
  • After a successful response, it updates chatMemory.

Enable/disable

  • memoryMaxMessages = 0 → memory off.
  • memoryMaxMessages > 0 → memory on (default 12).

memoryModePick (what to store)
0) prompt_only — store prompt only

  1. snapshot_only — store station snapshot only
  2. answers_only — store model answers only
  3. prompt_snapshot — prompt + snapshot
  4. prompt_answers — prompt + answers
  5. snapshot_answers — snapshot + answers
  6. prompt_snapshot_answers — everything

Clear

  • clearMemoryNow = true → chatMemory becomes empty.

Note
Snapshot and history can be large. If you store snapshot in memory, it grows quickly and you hit token/quota limits sooner.
For long-term use, prompt_answers or answers_only is usually enough.

  1. Models: refresh and selection :robot:
  • refreshModelsNow updates modelsList and fills modelPick.
  • updateNow can also fetch models automatically if the list is empty.
  • If model is empty or not found, the block uses the first model from the list.
  • For gemma models the block does not use systemInstruction; it prepends instructions into the user text instead.
  1. Status messages
    statusMessage examples:
  • “Models: loading…” — fetching model list
  • “Models: updated” — model list refreshed
  • “Analyze: preparing…” — building snapshot/history/request body
  • “Analyze: sending…” — request sent, waiting for response
  • “Analyze: success | Tokens: …” — success + token usage (if returned)
  • “Analyze ERR: …” — error
  • “Analyze paused (429).” — paused due to rate limit/quota

outText:

  • model answer on success
  • “ERR: …” on error
  • “Pause (429) until ms=…” while paused (Unix time in ms)
  1. Troubleshooting :warning:

apiKey empty

  • Fill apiKey. Ensure no spaces/newlines inside the key.

Models ERR: …

  • Often invalid key or no API access.
  • Check that Gemini API is enabled in your Google project and that quota is available.

Analyze ERR: model empty

  • Pick a model: refreshModelsNow → modelPick, or type model manually.

ERR: HTTP 401/403

  • Invalid key, API disabled, no billing/quota, or access restrictions (project/region).

ERR: HTTP 429 (quota/rate limit) :white_check_mark:

  • You hit a rate limit or your quota is exhausted.
  • The block pauses automatically:
    • ~2 minutes for “normal” 429 (rate limit)
    • ~30 minutes for quota/RESOURCE_EXHAUSTED
  • To recover:
    1. restartNow (clears local pause) and retry later
    2. reduce load: fewer updateNow presses, fewer points/history, lower maxOutputTokens
    3. fix the cause in Google console (quota/billing/limits)

PARSE_ERR

  • Gemini returned an unexpected JSON shape. outText contains RAW excerpt. Often fixed by switching model or refreshing models.

history error: not_table

  • Your historyBqlOrds does not resolve to a table. Verify the BQL-ORD; it must return BITable.

Empty station snapshot

  • pointsOrds are wrong/unresolved or not pointing to /points or a point.
  • Verify each ORD in Workbench (Resolve/Go To).
  • Remove extra characters at the start of the line. The block trims trailing “)” but does not fix leading junk.
  1. Load and safety :locked:
  • apiKey is stored in a slot. Do not show it on PX pages without protection.
  • Bigger pointsOrds and higher historyMaxRows produce larger requests and hit limits faster.
  • Typical “daily analysis” settings:
    • snapshotMaxPoints 200…800
    • historyMaxRows 50…200
    • memoryMaxMessages 6…20, mode answers_only or prompt_answers
  1. Where to improve next :compass:
  • Show 429 pause time as station time (not Unix ms).
  • Add internal throttling for updateNow to avoid button “bounce”.
  • Add snapshot/history caching (do not resend if unchanged).
  • Add “quick/full analysis” profiles (a single switch that sets the limits).
